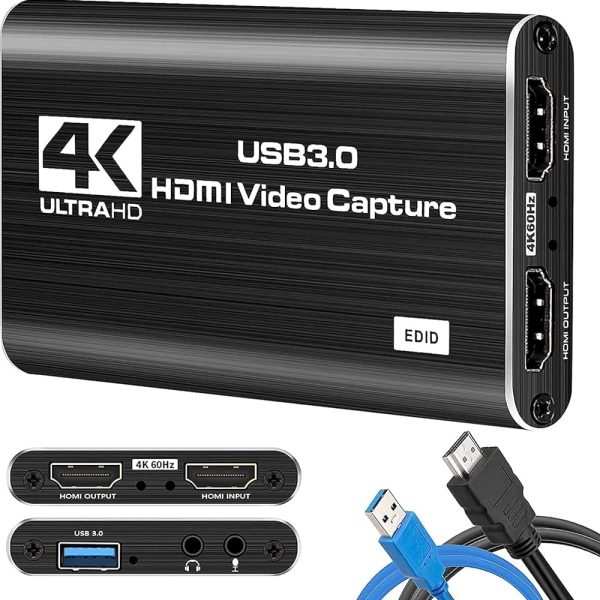

HDMI Video Capture Card

Advantages:

• Universal Compatibility. Support most acquisition software, Support Windows Android and Mac OS system.
• Stable Capture; Smooth video and audio; Without delay.
• High Speed Transmission. It supports Input (HDMI) max resolution 4K @30Hz; output (USB) max resolution 4K@30Hz. Please used with 4k HDMI cable.
• The capture card can realize screen sharing, fast, convenient & economical.
• No External Power Supply Required, Compact and Portable; Easy to Use and Carry.

Connection and Operation:

• Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
• Connect the computer to the usb port of the video capture with usb cable.
• Operation steps for USB video capture(OBS): Open the software →Choose sources of “Video capture Device” →Set the size of image →Choose “Studio Mode”(double window) →Choose “Start Recording”.

Features:

• Support input & output max resolution 4K;
• Support 8/10/12bit deep color;
• Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution);
• Video output format: YUV / JPEG; Support audio format: L-PCM
• Max working current: 0.4A/5VDC
• Operating Temperature range: (-10 to +55℃)
• Dimension (L x W x H): 64x28x13 (mm); Weight: 21.4g

Note:

• Computer hardware configuration requirements CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above Graphics card: PC NVIDIA GT630 or above NC NVIDIA GT735M or above ; Run memory: 4G RAM

Package Lists:

• 1x Video capture
• 1x User manual
