FJGEAR HDMI MATRIX (4×4) WITH AUDIO 4K60Hz ULTRA HD,4×4 HDMI Matrix with Audio Extractor 4K@60Hz HDR 18Gbps HDMI 2.0 Matrix Switcher Splitter 4 in 4 Out Support HDCP2.2 EDID RS232

Original price was: ৳ 11,000.Current price is: ৳ 9,000.

  • 4×4 HDMI Matrix with Audio Extractor 4K@60Hz HDR 18Gbps HDMI 2.0 Matrix Switcher Splitter 4 in 4 Out Support HDCP2.2 EDID RS232
  • Package:No
  • Packing:Carton Box
  • Application:SPEAKER,Computer,Multimedia,Monitor,DVD Player,Projector,Television,TV box,Amplifier
  • Type:HDMI-Compatible Cables
  • Connector B:HDMI-compatible
  • Connector A:HDMI-compatible
  • Model Number:4×4-H8
  • Gender:Female-Female
  • Brand Name:lieve
  • Origin:Mainland China
  • Certification:CE,RoHS
বর্তমান অস্থিতিশীল বাজার পরিস্থিতির কারনে দাম ও স্টক সম্পর্কে নিশ্চিত হয়ে অনলাইনে অর্ডার করুনঃ 01308-400643
Category: Tags: ,
Additional Information
Weight 0.1 kg
Dimensions 276 × 143 × 26 cm
Description

FJGEAR 4K 60Hz 4×4 HDMI Matrix Switch with Audio

  • 4K 4×4 HDMI Matrix Switch

    4KMX44-H2 is a 4×4 compact HDMI matrix switcher, specially designed for cost conscious projects and buyers. It features not only basic functions like cross-point switching and control (IR, RS-232, IP), but also advanced functions like auto-downscaling for each HDMI output when it is connected to 1080P display. With its compact and handy design, you can freely install it in sports bars, digital signages, control centers, etc.

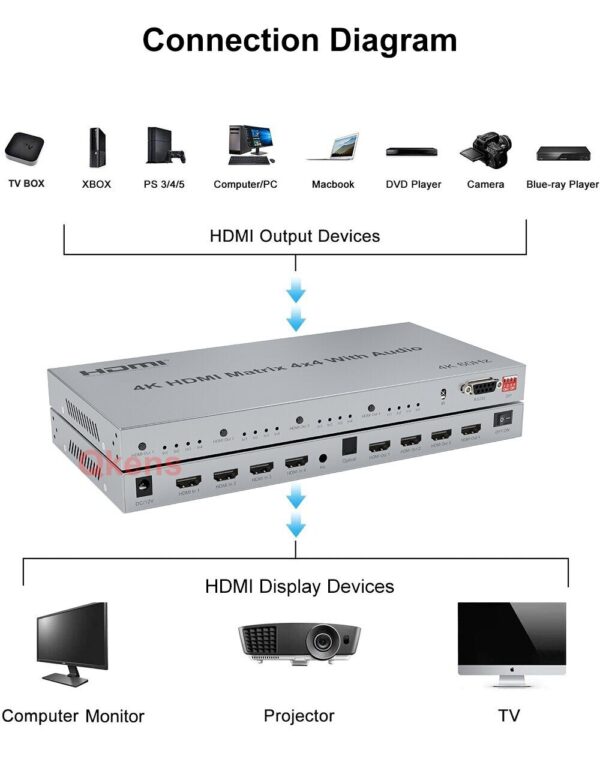

  • HDMI Inputs | 4 x HDMI Outputs: The 4×4 HDMI Matrix routes up to four 4K HDR HDMI sources to four 4K HDR display devices. Allow all outputs to mirror the same signal or independently route unique input signals to each display for a fully customized HDMI routing matrix
  • 4K 60Hz w/ HDR & Dolby Vision Support: HDMI 2.0 AND HDCP 1.4 / 2.2 Compliant | Users can enjoy all of the latest formats and standards with this 4×4 HDMI 2.0 Matrix including 4K | HDR | HDR10 | Dolby Vision | Dolby Atmos | DTS-X
  • Analog & SPDIF Audio De-Embedder: De-Embed analog or digital audio signals and route audio to 3rd party devices like soundbars, amplifiers or AV receivers via coaxial S/PDIF or analog phoenix connectors
  • Multiple Ways To Control: IR Remote | RS232 | WEB GUI | Manage HDMI signal routing, customized routing presets and EDID for ultimate flexibility and compatibility with various applications.
  • Main Features:
    • 4 HDMI Inputs and 4 HDMI Outputs.
    • All HDMI inputs and outputs support HDMI with HDR formats, including HDR 10, HLG, DOLBY VISION up to 4K@60 444.
    • HDCP2.2 compliant.
    • With built-in 4K-1080P downscaler for each HDMI Output, the matrix can downscale 4K@60Hz 4: 4: 4 to 1080P@60 4: 4: 4. 4K downscaler can work automatically when the matrix is connected to 1080P display and can be set to ON/OFF by API commands.
    • Each HDMI output has a SPDIF audio breakout, and supports formats up to 5CH HBR or 2CH PCM audio.
    • Supports smart EDID, each input can be assigned to smart EDID mode.
    • Supports EDID presets, EDID copy and EDID write. By default, each input EDID is set as 4K@60 4: 4: 4 HDR with 5.1CH encoded audio
    • Supports audio mute, four SPDIF outputs can be muted separately by API commands
    • Supports upgrading firmware via both micro-USB and web UI (for MCU and web module).

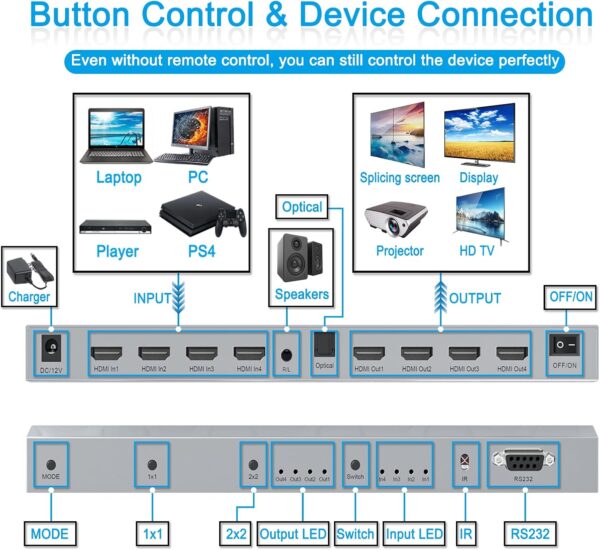

    • Rich control options, including RS232 control, IR, IP Control and front panel buttons control.
