FJGEAR HDMI 1080P/60Hz (2×2) VIDEO WALL CONTROLLER HS401,2×2 Video Wall Controller, 1080P@60Hz Resolution, 8 Splicing Modes 2×2/1×1/1×2/1×3/1×4/2×1/3×1/4×1, 180 Degree Rotate

Original price was: ৳ 17,000.Current price is: ৳ 13,500.

Product details of FJGEAR HDMI 1080P/60Hz (2×2) VIDEO WALL CONTROLLER HS401,2×2 Video Wall Controller, 1080P@60Hz Resolution, 8 Splicing Modes 2×2/1×1/1×2/1×3/1×4/2×1/3×1/4×1, 180 Degree Rotate

  • Supports 1 HDMI signal input and 4 HDMI signal output.
  • Support up to 1920×1200@60Hz resolution, downwards compatible.
  • Support a variety of splicing modes, such as 1×1/1×2/1×3/1×4/2×2, etc.
  • Support dip switch switching splicing mode.
  • Support RS-232 control instruction to set splicing mode.
  • Support 3.5mm left/right channel audio output.
  • Supports 180-degree rotation of HDMI1/2 display image in 2×2 mode (when upper displays installed upside down).
  • Firmware upgrading via micro USB port.
  • Lightning protection, surge protection, ESD protection.
  • Plug and play, no need to install drivers. Users can quickly set up their video wall without any hassle.
  • Digital Signage: Displaying ads and information in public spaces.
  • Control Rooms: Monitoring multiple data sources in real-time.
  • Corporate Lobbies: Showcasing branding and company information.
  • Entertainment Venues: Enhancing the experience in stadiums, theaters, etc.
  • Education: Facilitating interactive learning experiences.
  • Broadcasting: Presenting graphics and live feeds in studios.
  • Hospitality: Providing information and creating ambiance in hotels.
  • Retail: Showcasing products and promotions in stores.
  • Museums: Displaying exhibits and historical content.
  • Healthcare: Used for medical imaging and collaborative diagnostics.
  • Transportation Hubs: Providing travel information in airports and stations.
  • Events: Displaying schedules and engaging content at conferences.
বর্তমান অস্থিতিশীল বাজার পরিস্থিতির কারনে দাম ও স্টক সম্পর্কে নিশ্চিত হয়ে অনলাইনে অর্ডার করুনঃ 01308-400643
Category: Tags: , , , , , , , ,
Additional Information
Weight 1.250 kg
Dimensions 151.5 × 86.5 × 20 cm
Description

(2X2 TV Wall Controller)

Introduction:

The 2×2 tv wall controller , support 1-way HDMI input and 4 HDMI output.

The main function is to divide a complete HDMI,HD image signal into 4 blocks and assign to 4 video display unit

(such as Rear projection unit, LCD TV, etc.), Complete with 4 HDMI high-definition video display units to form a large dynamic image screen.



Features:

Support 1 HDMI input

Support input HDMI1.3

Support 4 HDMI outputs

Support input 1920x1080P,24/30/50/60HZ,and lower resolution

Support output resolution 1920x1080P

Support multiple splicing modes, easy to operate, plug and play

HDMI: V1.4

Power: 12V

Resolution:1920*1080 @60Hz

Input distance: ≤ 5 M

Output distance: ≤ 10 M

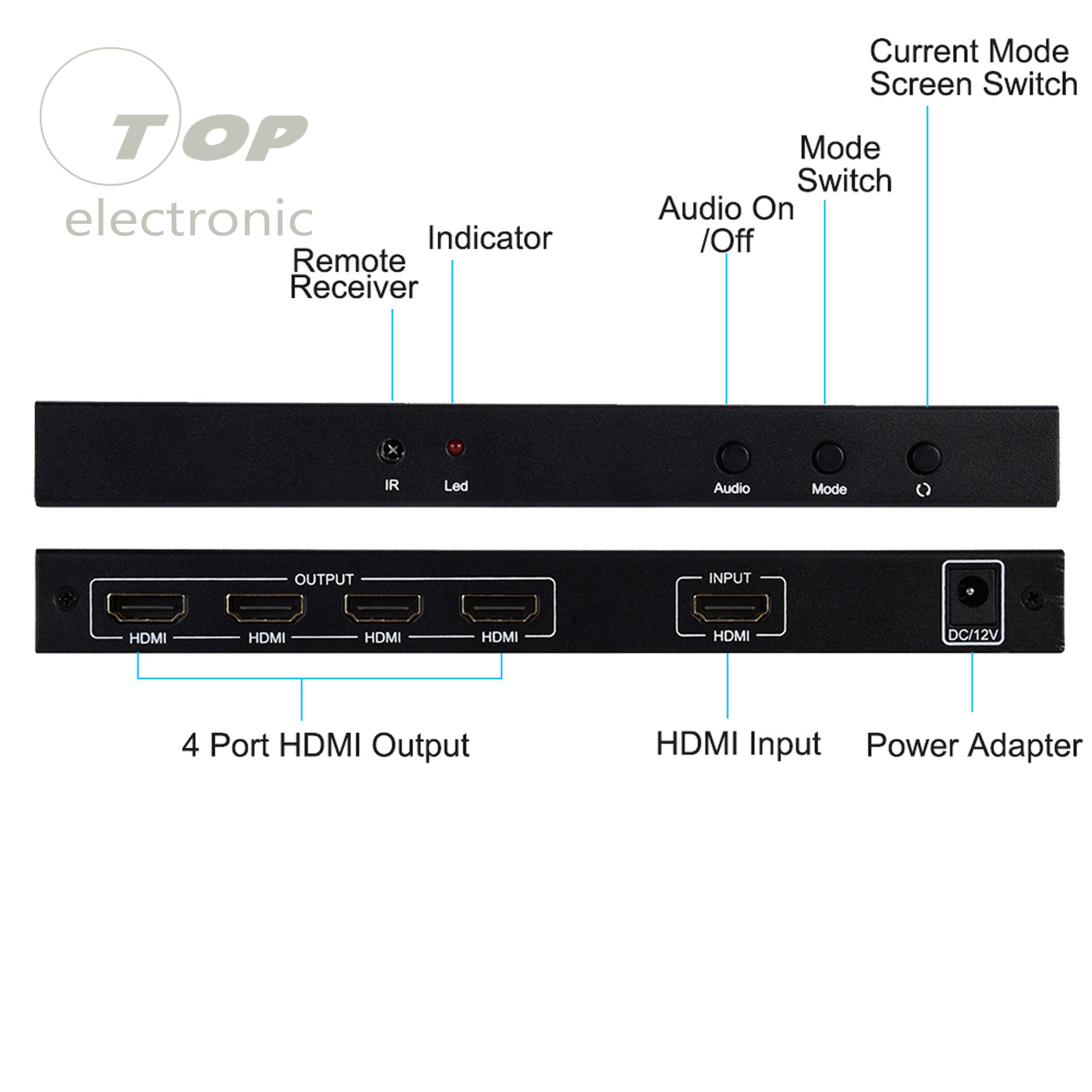

Operation steps:

STEP 1: Connect hdmi source to hdmi input with HDMI cable,connect hdmi output to TVs.

STEP 2: Connect 12V power adaptor.

STEP 3: Set up splicing mode by the MODE button on the unit or remote controller.

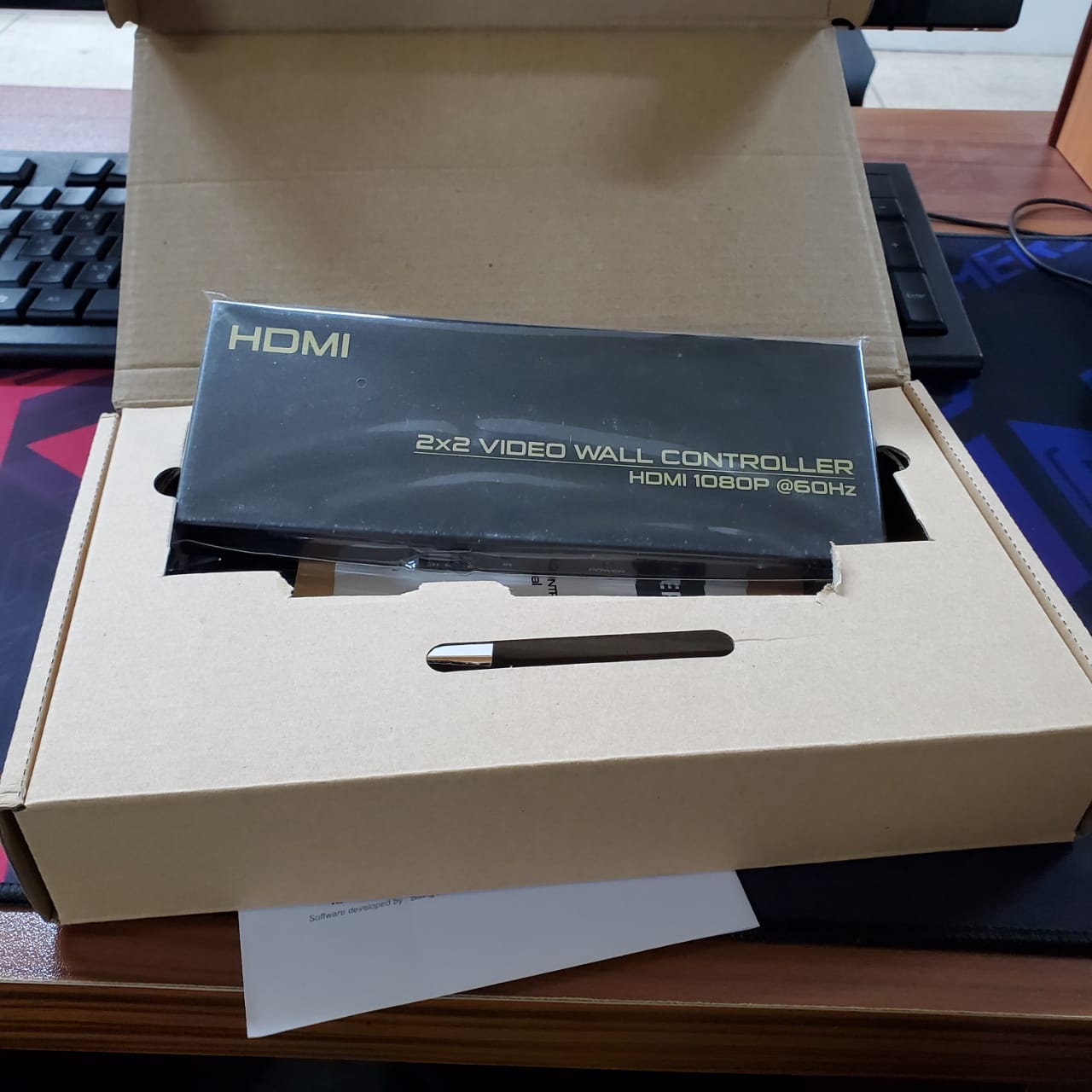

Package included:

1. 2X2 TV Wall Controller x1

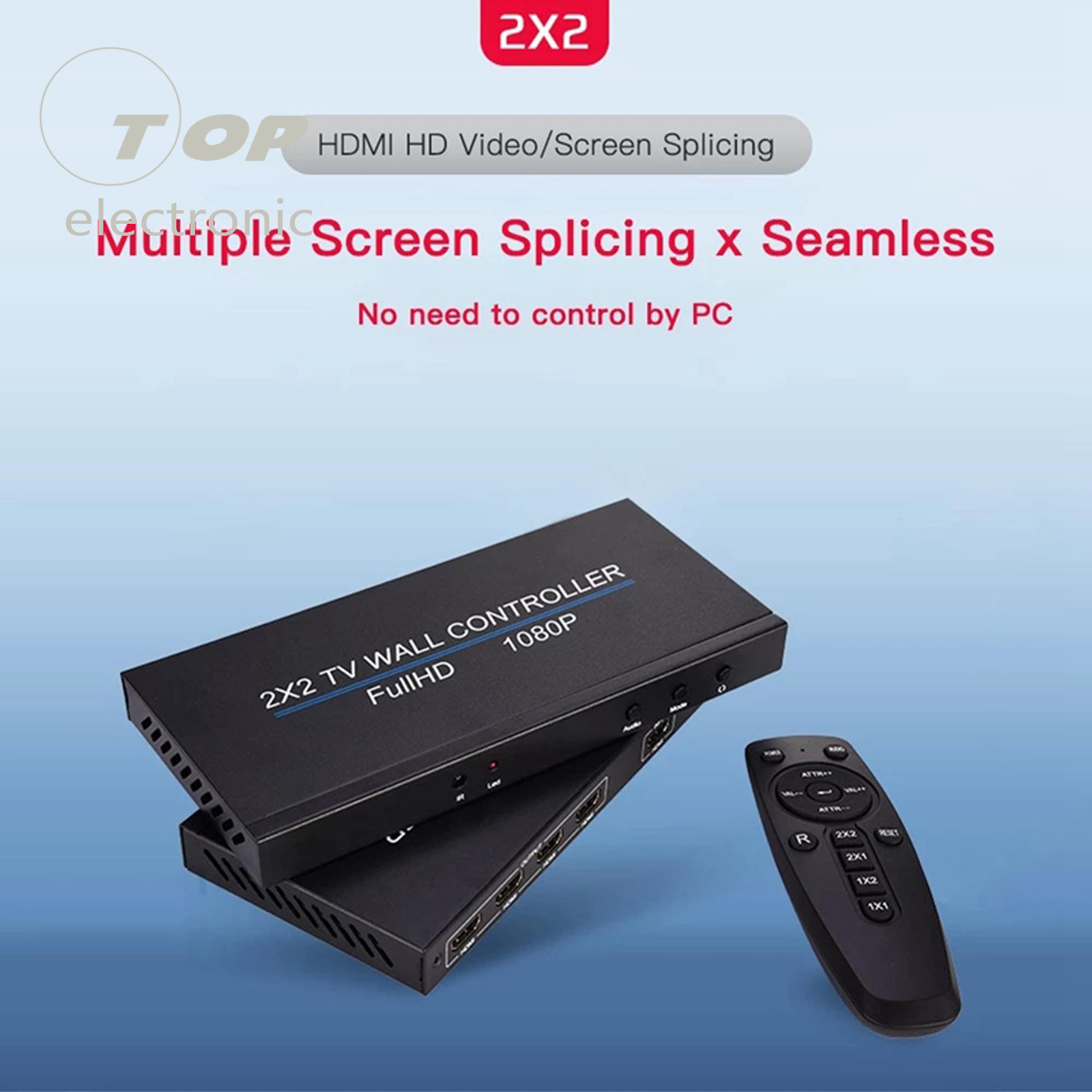

2. Remote Control x1

3. Power Adapter x1

4. User Manual x1



(HDMI To RF TV Transmitter（EU Plug）)

Note: Please check the format of your TV support before placing an order, because this converter only outputs four TV formats: PAL-BG, PAL-1, PAL-DK and NTSC-M. If your TV does not support 4 of them. Kind, the converter does not work!

And the device can’t work in reverse; support input HDMI resolution: 480I / 480P / 576I / 576P / 720P / 720I / 1080I / 1080P.



HDMI to RF Coax Converter Adapter for TV – Convert HDMI digital signals to RF Analogo signals,

Display your DVD/Blu-ray player, game console, set-top box or PC computer with hdmi source device coaxial analog signal output on a regular old TV or show your multimedia document from your laptop to your audience via a large screen projector .

HDMI RF signal transmitter – HDMI coaxial output, long-distance signal transmission can be used in different rooms through coaxial cable.

RF Coaxial Converter – Outputs only analog signals, image quality will be lower than RF analog signals (more like 480p); not applicable to ATSC format!

HDMI RF Modulator with Remote Control – You can use the remote control to switch the output screen up and down as well as amplitude, brightness, contrast and chrominance.



Product Name HDMI 2X2 VIDEO WALL CONTROLLER (1080P@60HZ)
Video signal HDMI Input 1x HDMI
HDMI Output 4x HDMI
Compatibility HDMI 1.4
HDCP 1.4
Resolutions 1080p@50/60Hz, 720p@50/60Hz, 576p@50Hz, 480p@60Hz, 1920×1200, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
Audio signal 3.5mm Output PCM
HDMI Output PCM
Splice Settings Mode 1×1/1×2/1×3/1×4/2×2/2×1/3×1/4×1
DIP Switch
RS-232（GND/RxD/TxD） Default Baud Rate：9600

Only when the DIP switch is set to 111, mode witching can be performed via RS-232
Power Power Supply DC5V/1A
Power Consumption ＜4W
Operating Environment Working temperature -20℃~60℃
Storage temperature -30℃~70℃
Humidity 0~90%RH（No condensation）
Physical Properties Housing Iron
Weight 280gm
Color Black
Dimensions 151.5(L)*86.5(W)*20.0(H)mm
Protection ESD protection

1a Contact discharge level 2 (±4KV)

1b Air discharge level 3 (±8KV)

Implementation of the standard: IEC61000-4-2
